Face Detection on Desktop

This is an example of using MediaPipe to run face detection models (TensorFlow Lite) and render bounding boxes on the detected faces. To know more about the face detection models, please refer to the model README file. Moreover, if you are interested in running the same TensorfFlow Lite model on Android/iOS, please see the Face Detection on GPU on Android/iOS and Face Detection on CPU on Android/iOS examples.

We show the face detection demos with TensorFlow Lite model using the Webcam:

• TensorFlow Lite Face Detection Demo with Webcam (CPU)

• TensorFlow Lite Face Detection Demo with Webcam (GPU)

Note: If MediaPipe depends on OpenCV 2, please see the known issues with OpenCV 2 section.

TensorFlow Lite Face Detection Demo with Webcam (CPU)

To build and run the TensorFlow Lite example on desktop (CPU) with Webcam, run:

# Video from webcam running on desktop CPU
$ bazel build -c opt --define MEDIAPIPE_DISABLE_GPU=1 \
    mediapipe/examples/desktop/face_detection:face_detection_cpu

# It should print:
# Target //mediapipe/examples/desktop/face_detection:face_detection_cpu up-to-date:
#   bazel-bin/mediapipe/examples/desktop/face_detection/face_detection_cpu
# INFO: Elapsed time: 36.417s, Critical Path: 23.22s
# INFO: 711 processes: 710 linux-sandbox, 1 local.
# INFO: Build completed successfully, 734 total actions

# This will open up your webcam as long as it is connected and on
# Any errors is likely due to your webcam being not accessible
$ GLOG_logtostderr=1 bazel-bin/mediapipe/examples/desktop/face_detection/face_detection_cpu \
    --calculator_graph_config_file=mediapipe/graphs/face_detection/face_detection_desktop_live.pbtxt

TensorFlow Lite Face Detection Demo with Webcam (GPU)

Note: This currently works only on Linux, and please first follow OpenGL ES Setup on Linux Desktop.

To build and run the TensorFlow Lite example on desktop (GPU) with Webcam, run:

# Video from webcam running on desktop GPU
# This works only for Linux currently
$ bazel build -c opt --copt -DMESA_EGL_NO_X11_HEADERS --copt -DEGL_NO_X11 \
    mediapipe/examples/desktop/face_detection:face_detection_gpu

# It should print:
# Target //mediapipe/examples/desktop/face_detection:face_detection_gpu up-to-date:
#   bazel-bin/mediapipe/examples/desktop/face_detection/face_detection_gpu
# INFO: Elapsed time: 36.417s, Critical Path: 23.22s
# INFO: 711 processes: 710 linux-sandbox, 1 local.
# INFO: Build completed successfully, 734 total actions

# This will open up your webcam as long as it is connected and on
# Any errors is likely due to your webcam being not accessible,
# or GPU drivers not setup properly.
$ GLOG_logtostderr=1 bazel-bin/mediapipe/examples/desktop/face_detection/face_detection_gpu \
    --calculator_graph_config_file=mediapipe/graphs/face_detection/face_detection_mobile_gpu.pbtxt

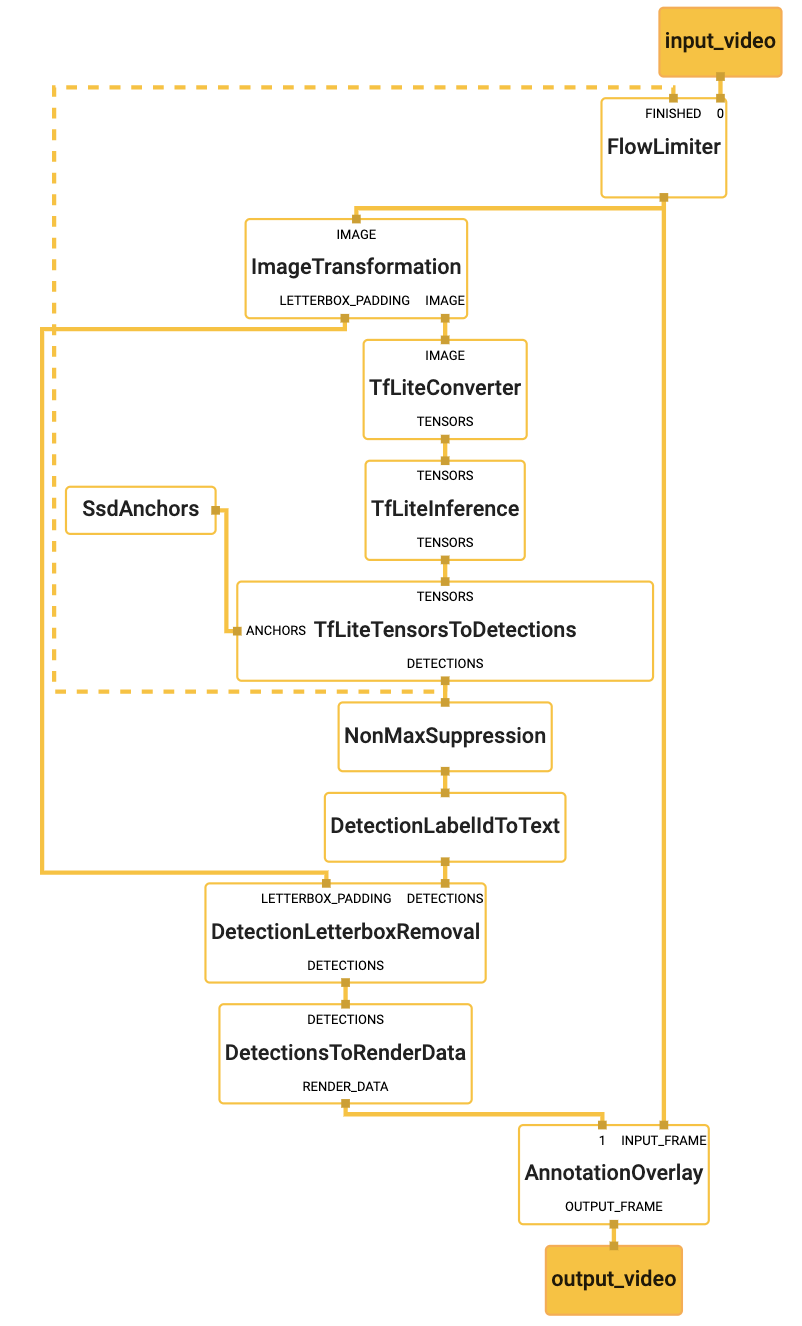

Graph

To visualize the graph as shown above, copy the text specification of the graph below and paste it into MediaPipe Visualizer.

# MediaPipe graph that performs face detection with TensorFlow Lite on CPU & GPU.
# Used in the examples in
# mediapipe/examples/desktop/face_detection:face_detection_cpu.

# Images on CPU coming into and out of the graph.
input_stream: "input_video"
output_stream: "output_video"

# Throttles the images flowing downstream for flow control. It passes through
# the very first incoming image unaltered, and waits for
# TfLiteTensorsToDetectionsCalculator downstream in the graph to finish
# generating the corresponding detections before it passes through another
# image. All images that come in while waiting are dropped, limiting the number
# of in-flight images between this calculator and
# TfLiteTensorsToDetectionsCalculator to 1. This prevents the nodes in between
# from queuing up incoming images and data excessively, which leads to increased
# latency and memory usage, unwanted in real-time mobile applications. It also
# eliminates unnecessarily computation, e.g., a transformed image produced by
# ImageTransformationCalculator may get dropped downstream if the subsequent
# TfLiteConverterCalculator or TfLiteInferenceCalculator is still busy
# processing previous inputs.
node {
  calculator: "FlowLimiterCalculator"
  input_stream: "input_video"
  input_stream: "FINISHED:detections"
  input_stream_info: {
    tag_index: "FINISHED"
    back_edge: true
  }
  output_stream: "throttled_input_video"
}

# Transforms the input image on CPU to a 128x128 image. To scale the input
# image, the scale_mode option is set to FIT to preserve the aspect ratio,
# resulting in potential letterboxing in the transformed image.
node: {
  calculator: "ImageTransformationCalculator"
  input_stream: "IMAGE:throttled_input_video"
  output_stream: "IMAGE:transformed_input_video_cpu"
  output_stream: "LETTERBOX_PADDING:letterbox_padding"
  node_options: {
    [type.googleapis.com/mediapipe.ImageTransformationCalculatorOptions] {
      output_width: 128
      output_height: 128
      scale_mode: FIT
    }
  }
}

# Converts the transformed input image on CPU into an image tensor stored as a
# TfLiteTensor.
node {
  calculator: "TfLiteConverterCalculator"
  input_stream: "IMAGE:transformed_input_video_cpu"
  output_stream: "TENSORS:image_tensor"
}

# Runs a TensorFlow Lite model on CPU that takes an image tensor and outputs a
# vector of tensors representing, for instance, detection boxes/keypoints and
# scores.
node {
  calculator: "TfLiteInferenceCalculator"
  input_stream: "TENSORS:image_tensor"
  output_stream: "TENSORS:detection_tensors"
  node_options: {
    [type.googleapis.com/mediapipe.TfLiteInferenceCalculatorOptions] {
      model_path: "mediapipe/models/face_detection_front.tflite"
    }
  }
}

# Generates a single side packet containing a vector of SSD anchors based on
# the specification in the options.
node {
  calculator: "SsdAnchorsCalculator"
  output_side_packet: "anchors"
  node_options: {
    [type.googleapis.com/mediapipe.SsdAnchorsCalculatorOptions] {
      num_layers: 4
      min_scale: 0.1484375
      max_scale: 0.75
      input_size_height: 128
      input_size_width: 128
      anchor_offset_x: 0.5
      anchor_offset_y: 0.5
      strides: 8
      strides: 16
      strides: 16
      strides: 16
      aspect_ratios: 1.0
      fixed_anchor_size: true
    }
  }
}

# Decodes the detection tensors generated by the TensorFlow Lite model, based on
# the SSD anchors and the specification in the options, into a vector of
# detections. Each detection describes a detected object.
node {
  calculator: "TfLiteTensorsToDetectionsCalculator"
  input_stream: "TENSORS:detection_tensors"
  input_side_packet: "ANCHORS:anchors"
  output_stream: "DETECTIONS:detections"
  node_options: {
    [type.googleapis.com/mediapipe.TfLiteTensorsToDetectionsCalculatorOptions] {
      num_classes: 1
      num_boxes: 896
      num_coords: 16
      box_coord_offset: 0
      keypoint_coord_offset: 4
      num_keypoints: 6
      num_values_per_keypoint: 2
      sigmoid_score: true
      score_clipping_thresh: 100.0
      reverse_output_order: true
      x_scale: 128.0
      y_scale: 128.0
      h_scale: 128.0
      w_scale: 128.0
      min_score_thresh: 0.75
    }
  }
}

# Performs non-max suppression to remove excessive detections.
node {
  calculator: "NonMaxSuppressionCalculator"
  input_stream: "detections"
  output_stream: "filtered_detections"
  node_options: {
    [type.googleapis.com/mediapipe.NonMaxSuppressionCalculatorOptions] {
      min_suppression_threshold: 0.3
      overlap_type: INTERSECTION_OVER_UNION
      algorithm: WEIGHTED
      return_empty_detections: true
    }
  }
}

# Maps detection label IDs to the corresponding label text ("Face"). The label
# map is provided in the label_map_path option.
node {
  calculator: "DetectionLabelIdToTextCalculator"
  input_stream: "filtered_detections"
  output_stream: "labeled_detections"
  node_options: {
    [type.googleapis.com/mediapipe.DetectionLabelIdToTextCalculatorOptions] {
      label_map_path: "mediapipe/models/face_detection_front_labelmap.txt"
    }
  }
}

# Adjusts detection locations (already normalized to [0.f, 1.f]) on the
# letterboxed image (after image transformation with the FIT scale mode) to the
# corresponding locations on the same image with the letterbox removed (the
# input image to the graph before image transformation).
node {
  calculator: "DetectionLetterboxRemovalCalculator"
  input_stream: "DETECTIONS:labeled_detections"
  input_stream: "LETTERBOX_PADDING:letterbox_padding"
  output_stream: "DETECTIONS:output_detections"
}

# Converts the detections to drawing primitives for annotation overlay.
node {
  calculator: "DetectionsToRenderDataCalculator"
  input_stream: "DETECTIONS:output_detections"
  output_stream: "RENDER_DATA:render_data"
  node_options: {
    [type.googleapis.com/mediapipe.DetectionsToRenderDataCalculatorOptions] {
      thickness: 4.0
      color { r: 255 g: 0 b: 0 }
    }
  }
}

# Draws annotations and overlays them on top of the input images.
node {
  calculator: "AnnotationOverlayCalculator"
  input_stream: "IMAGE:throttled_input_video"
  input_stream: "render_data"
  output_stream: "IMAGE:output_video"
}
