Coral Dev Board Setup (experimental)

Disclaimer: Running MediaPipe on Coral is experimental, and this process may not be exact and is subject to change. These instructions have only been tested on the Coral Dev Board running Mendel Enterprise Day 13 OS and using Diploria2 edgetpu libs, and may vary for different devices and workstations.

This file describes how to prepare a Coral Dev Board and setup a Linux Docker container for building MediaPipe applications that run on Edge TPU.

Before creating the Docker

  • (on host machine) run setup.sh from MediaPipe root directory

      sh mediapipe/examples/coral/setup.sh

  • Setup the coral device via here, and ensure the mdt command works

      Note:   alias mdt="python3 -m mdt.main"    may be needed on some systems

  • (on coral device) prepare MediaPipe

      cd ~
      sudo apt-get update && sudo apt-get install -y git
      git clone https://github.com/google/mediapipe.git
      mkdir mediapipe/bazel-bin

  • (on coral device) install opencv 3.2

      sudo apt-get update && sudo apt-get install -y libopencv-dev

  • (on coral device) find all opencv libs

      find /usr/lib/aarch64-linux-gnu/ -name 'libopencv*so'

  • (on host machine) copy core opencv libs from coral device to a local folder inside MediaPipe checkout:

      # in root level mediapipe folder #
      mdt pull /usr/lib/aarch64-linux-gnu/libopencv_core.so opencv32_arm64_libs
      mdt pull /usr/lib/aarch64-linux-gnu/libopencv_calib3d.so opencv32_arm64_libs
      mdt pull /usr/lib/aarch64-linux-gnu/libopencv_features2d.so opencv32_arm64_libs
      mdt pull /usr/lib/aarch64-linux-gnu/libopencv_highgui.so opencv32_arm64_libs
      mdt pull /usr/lib/aarch64-linux-gnu/libopencv_imgcodecs.so opencv32_arm64_libs
      mdt pull /usr/lib/aarch64-linux-gnu/libopencv_imgproc.so opencv32_arm64_libs
      mdt pull /usr/lib/aarch64-linux-gnu/libopencv_video.so opencv32_arm64_libs
      mdt pull /usr/lib/aarch64-linux-gnu/libopencv_videoio.so opencv32_arm64_libs

  • (on host machine) Create and start the docker environment

      # from mediapipe root level directory #
      docker build -t coral .
      docker run -it --name coral coral:latest


Inside the Docker environment

  • Update library paths in /mediapipe/third_party/opencv_linux.BUILD

    (replace 'x86_64-linux-gnu' with 'aarch64-linux-gnu')

      "lib/aarch64-linux-gnu/libopencv_core.so",
      "lib/aarch64-linux-gnu/libopencv_calib3d.so",
      "lib/aarch64-linux-gnu/libopencv_features2d.so",
      "lib/aarch64-linux-gnu/libopencv_highgui.so",
      "lib/aarch64-linux-gnu/libopencv_imgcodecs.so",
      "lib/aarch64-linux-gnu/libopencv_imgproc.so",
      "lib/aarch64-linux-gnu/libopencv_video.so",
      "lib/aarch64-linux-gnu/libopencv_videoio.so",

  • Attempt to build hello world (to download external deps)

      bazel build -c opt --define MEDIAPIPE_DISABLE_GPU=1 mediapipe/examples/desktop/hello_world:hello_world

  • Edit /edgetpu/libedgetpu/BUILD

    to add this build target

       cc_library(
           name = "lib",
           srcs = [
               "libedgetpu.so",
           ],
           visibility = ["//visibility:public"],
       )

  • Edit /edgetpu/WORKSPACE

    update /mediapipe/WORKSPACE TENSORFLOW_* variables to match what /edgetpu/WORKSPACE has:

      grep TENSORFLOW_ /mediapipe/WORKSPACE
      grep TENSORFLOW_ /edgetpu/WORKSPACE

      # Make sure the /mediapipe/WORKSPACE  _TENSORFLOW_GIT_COMMIT  and  _TENSORFLOW_SHA256
      #   match the /edgetpu/WORKSPACE  TENSORFLOW_COMMIT  and  TENSORFLOW_SHA256  respectively.

      # If they do not match, modify /mediapipe/WORKSPACE to match what /edgetpu/WORKSPACE has.
      # Also comment out the MediaPipe org_tensorflow patch section.

  • Edit /mediapipe/mediapipe/calculators/tflite/BUILD to change rules for tflite_inference_calculator.cc

      sed -i 's/\":tflite_inference_calculator_cc_proto\",/\":tflite_inference_calculator_cc_proto\",\n\t\"@edgetpu\/\/:header\",\n\t\"@libedgetpu\/\/:lib\",/g' /mediapipe/mediapipe/calculators/tflite/BUILD

    The above command should add

      "@edgetpu//:header",
      "@libedgetpu//:lib",

    to the _deps_ of tflite_inference_calculator.cc

    Now also remove XNNPACK deps:

      sed -i 's/\"@org_tensorflow\/\/tensorflow\/lite\/delegates\/xnnpack/#\"@org_tensorflow\/\/tensorflow\/lite\/delegates\/xnnpack/g' /mediapipe/mediapipe/calculators/tflite/BUILD


Now try cross-compiling for device

  • Object detection demo

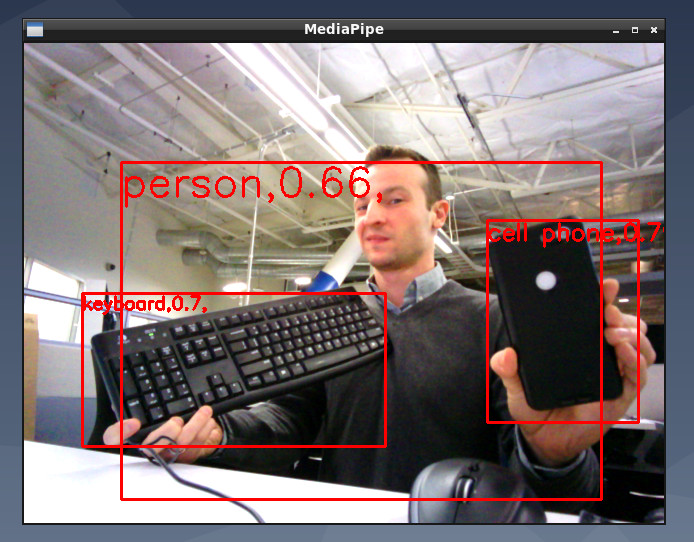

Object Detection running on Coral

    bazel build -c opt --crosstool_top=@crosstool//:toolchains --compiler=gcc --cpu=aarch64 --define MEDIAPIPE_DISABLE_GPU=1 --copt -DMEDIAPIPE_EDGE_TPU --copt=-flax-vector-conversions mediapipe/examples/coral:object_detection_tpu

Copy object_detection_tpu binary to the MediaPipe checkout on the coral device

    # outside docker env, open new terminal on host machine #
    docker ps
    docker cp <container-id>:/mediapipe/bazel-bin/mediapipe/examples/coral/object_detection_tpu /tmp/.
    mdt push /tmp/object_detection_tpu /home/mendel/mediapipe/bazel-bin/.
  • Face detection demo

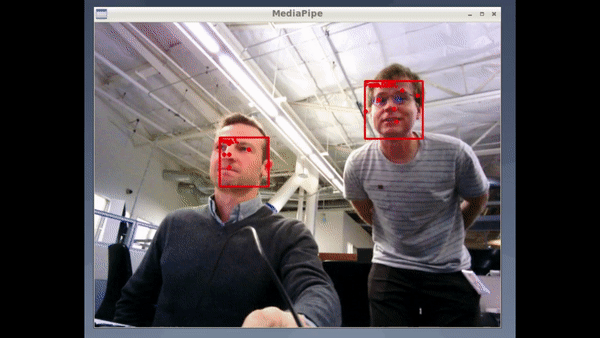

Face Detection running on Coral

    bazel build -c opt --crosstool_top=@crosstool//:toolchains --compiler=gcc --cpu=aarch64 --define MEDIAPIPE_DISABLE_GPU=1 --copt -DMEDIAPIPE_EDGE_TPU --copt=-flax-vector-conversions mediapipe/examples/coral:face_detection_tpu

Copy face_detection_tpu binary to the MediaPipe checkout on the coral device

    # outside docker env, open new terminal on host machine #
    docker ps
    docker cp <container-id>:/mediapipe/bazel-bin/mediapipe/examples/coral/face_detection_tpu /tmp/.
    mdt push /tmp/face_detection_tpu /home/mendel/mediapipe/bazel-bin/.

On the coral device (with display)

 # Object detection
 cd ~/mediapipe
 chmod +x bazel-bin/object_detection_tpu
 export GLOG_logtostderr=1
 bazel-bin/object_detection_tpu --calculator_graph_config_file=mediapipe/examples/coral/graphs/object_detection_desktop_live.pbtxt

 # Face detection
 cd ~/mediapipe
 chmod +x bazel-bin/face_detection_tpu
 export GLOG_logtostderr=1
 bazel-bin/face_detection_tpu --calculator_graph_config_file=mediapipe/examples/coral/graphs/face_detection_desktop_live.pbtxt
